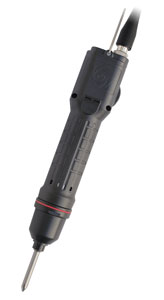

Brushless screwdriver with wide torque range corresponds various fastening work
- Brushless Motor
- Equipped with a torque adjustment ring cover.
- Reduced heat generation (start-up current of the motor is constrolled to reduce unnecessary heat.)
- Eco-friendly: Adoption of green procurement parts, carbon dust free by use of brushless motor. Eco-friendly design by pursued cleanliness.
- Robust and high durability realized by new body design using high strength plastic.
- ESD (electrostatic discharge) protection compliant with IEC61340-5-1.
Specifications
| Starting Method: | Push to Start |
| Free Speed: | 2000 min -1 |
| Torque: | 0.4 - 3.0 Nm |
| Screw Size (Machine Screw): | 2.6 - 5.0 mm |
| Screw Size (Tapping Screw): | 2.5 - 4.0 mm |
| Mass (Weight): | 690 g |
| Voltage: | 40 V AC |
| Power Consumption: | Approx. 44 W |
Optional Accessories
Bit Type (mm)
Torque Diagrams (for reference)
Power Supply
