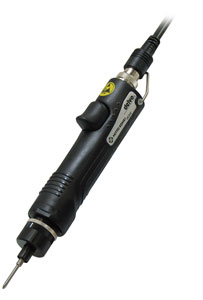

In response of the needs of cell production system space-saving DELVO screwdrivers are released. Controller is designed for emphasis on space-saving size and lightness.
- Clear disengagement of clutch (low-shock mechanism unavailable)
- Grounded bit installation mechanism
- ESD (electrostatic discharge) protection
- New lever is adopted
- Low swing bit mechanism
- Low voltage transformerless controller
Specifications
| Starting Method: | Lever Start |
| Free Speed: | 450-600 min -1 |
| Torque: | 0.15 - 0.4 Nm |
| Screw Size (Machine Screw): | 1.6 - 2.6 mm |
| Screw Size (Tapping Screw): | 1.4 - 2.3 mm |
| Mass (Weight): | 230 g |
| Voltage: | 40 V DC |
| Power Consumption: | Approx. 10 W |
| Standard Accessories: |
|
Optional Accessories
Bit Type (mm)

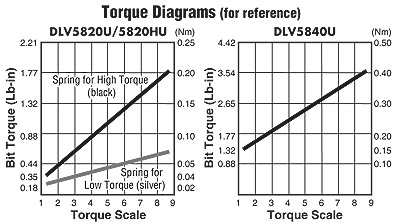

Torque Diagrams (for reference)

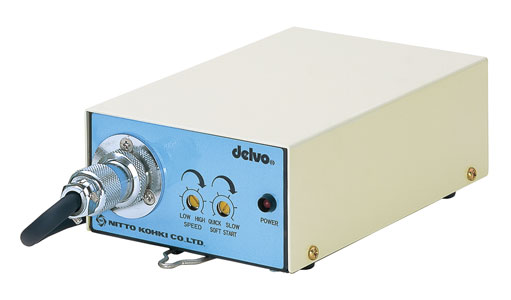

Controller
| DLC0350GG | |
| Input Voltage: | 230 V AC, 50/60 Hz |
| Plug: | EUROPE |
| Mass: | 230 g |
