The light and compact body reduces operator fatigue
Specifications
| Starting Method: | Lever Start |
| Free Speed: | 450 - 600 min -1 |
| Torque: | 0.15 - 0.4 Nm |
| Screw Size (Machine Screw): | 1.6 - 2.6 mm |
| Screw Size (Tapping Screw): | 1.4 - 2.3 mm |
| Mass (Weight): | 230 g |
| Voltage: | 40 V DC |
| Power Consumption: | Approx. 10 W |
| Standard Accessories: |
|
Optional Accessories
Bit Type (mm)

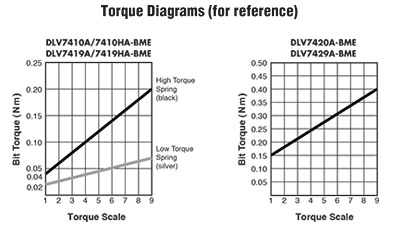

Torque Diagrams (for reference)
Controller
| DLC1110-GE | |
| Input Voltage: | 220 V AC, 50/60 Hz |
| Plug Shape: | UK |
| Mass: | 900 g |
| DLC1110-GG | |
| Input Voltage: | 230 V AC, 50/60 Hz |
| Plug Shape: | Europe |
| Mass: | 900 g |
| DLC1110-HE | |
| Input Voltage: | 240 V AC, 50/60 Hz |
| Plug Shape: | UK |
| Mass: | 900 g |
| DLC1213A-GGB *1 | |
| Input Voltage: | 230 V AC, 50/60 Hz |
| Plug Shape: | Europe |
| Mass: | 2.300 g |
| DLC1213A-HEB *1 | |
| Input Voltage: | 240 V AC, 50/60 Hz |
| Plug Shape: | UK |
| Mass: | 2.300 g |
An optional cord is required to connect with this model.
Neither DLC1213A-GG nor DLC1213A-HE can be used with the DLV7400A series.
