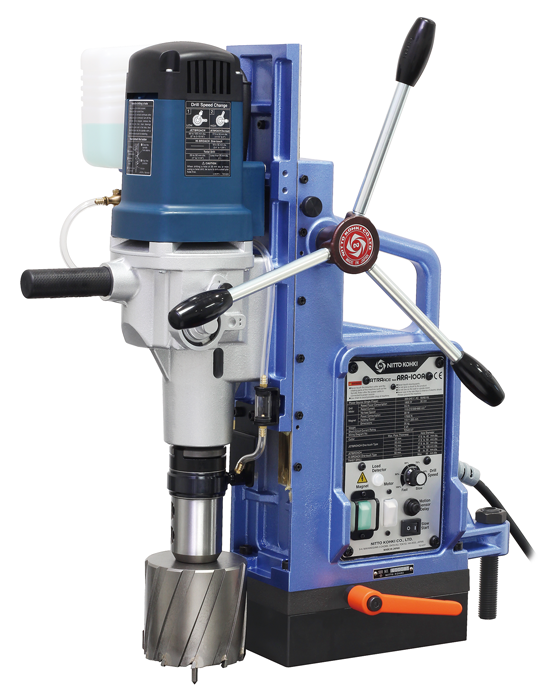

The versatile drilling machine with top-class power
Specifications
| Power Source (Single Phase): | 220 V AC 50/60 Hz |
| Rated Power Consumption: | 1800 W |
| Magnet Power Consumption: | 80 W |
| Hole Diameter: | 17.5 to 100 mm |
| Plate Thickness: | 13 to 75 mm |
| No Load Speed: | 100-210/330-660 min-1 |
| Magnet Holding Power: | 17 kN |
| Magnet Dimensions: | 110 x 220 mm |
| Mass (Weight): | 30 kg |
| Standard Accessories: |
|

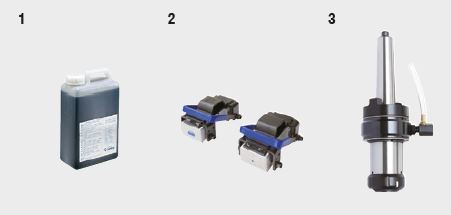

Optional Parts
Application Examples
