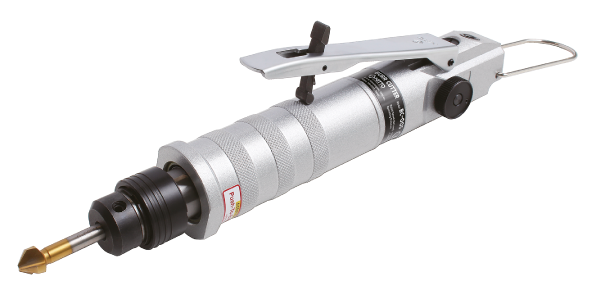

For deburring machined holes
- While gripping the lever, push the countersink into the machined holes to remove burrs.
- Optimum speed can be obtained by the adjust valve, resulting in clean deburred surfaces.
- Deburring work can be made wherever air source is available. No need to carry workpieces to a drill press.
Specifications
| Air Pressure: | 0.6 MPa |
| Air Consumption (No load): | 0.22 m³/min |
| Motor Free Speed (rpm): | 420 min-1 |
| Deburring hole diameter: | 3 to 34 mm |
| Countersink shank size: | 6, 8, 10 mm |
| Mass (Weight): | 0.75 kg |
| Standard Accessories: |
|

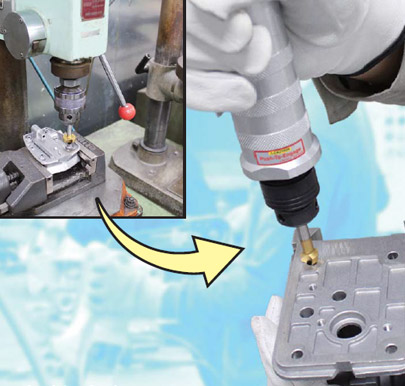

Application Examples

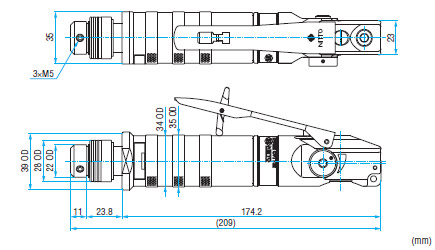

Dimensions Diagram (mm)
