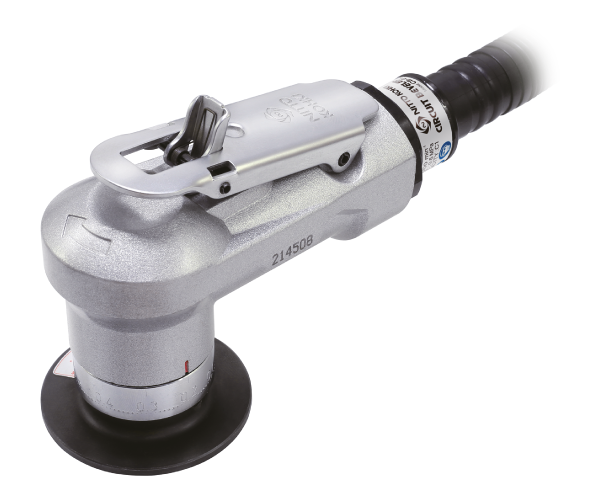

CB-01

(669.38 KB)

(405.59 KB)

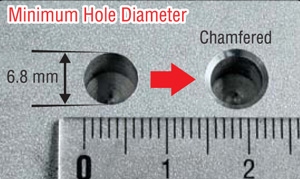

Only requires a 6.8 mm diameter hole for chamfering
Two 3-sided indexable inserts provide a cost effective way to get a smooth, chatter free finish
Lightweight at only 500g

Capacity:	0C ～ 1C
Chamfer Angle:	45°
Air Consumption (No load):	0.15 m³/min
Mass (Weight):	0.5 kg
Standard Accessories:	Indexable Insert: 2 pcs. (Installed) Indexable Insert set screw: 2 pcs. (Installed) Indexable Insert set screw: 2 pcs. (a back up supply) Hex key 2 for chamfering adjustments: 1 pc. T-6F wrench for cutter set screw: 1pc. Bushing R 1/4 x NPT 1/4: 1pc.

Nitto Kohki
