Specifications
| Rated Pressure: | 0.7 bar |
| Rated Airflow: | 3.5 l/min |
| Rated Voltage: |
230 V 120 V |
| Maximum Pressure: | 1.0 bar |
| Power Consumption: |
25 W 20 W |
| Rated Frequency: |
50 Hz 60 Hz |
| Life Expectancy: | 3.000 h |
| Outlet: | 4.7mm O.D. hose nipple |
| Duty Cycle: | Continuous |
| Coil Insulation Class: | E or its equivalent (JETL) and B for UL-1450 |
| Mounting Dimensions (L x W): | 75 x 88 mm |
| Gross Weight: | 1.7 kg |
| Leadwire Length: | 200 mm |

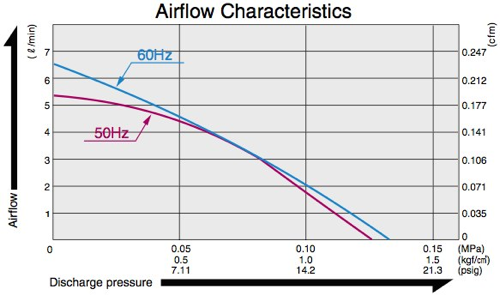

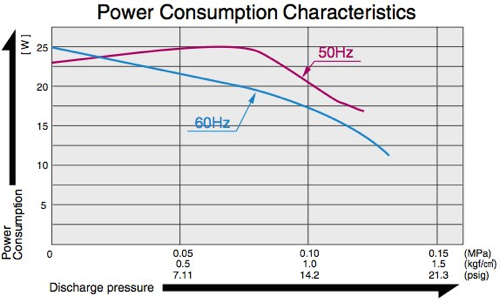

Airflow & Power Consumption
(click to enlarge)
Application Examples

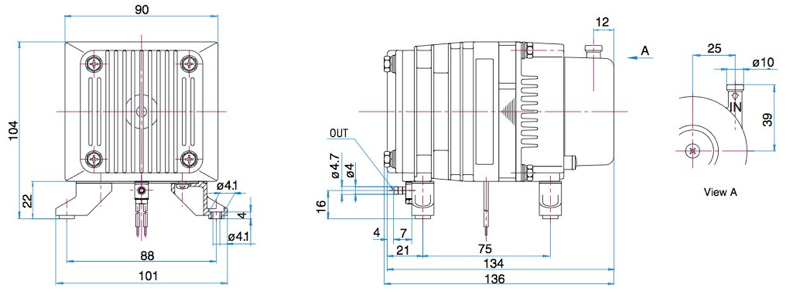

Sketch Drawing and Mounting Dimensions Diagram (mm)
