Specifications
| Rated Pressure: | 0.2 bar |
| Rated Airflow: | 55 l/min |
| Rated Voltage: |
230 V 120 V |
| Maximum Pressure: | 0.45 bar |
| Power Consumption: |
85 W 75 W |
| Rated Frequency: |
50 Hz 60 Hz |
| Life Expectancy: | 10.000 h |
| Outlet: | ISO Rc 3/8 (female threaded) |
| Duty Cycle: | Continuous |
| Coil Insulation Class: | E or its equivalent (JETL) and B for UL-1450 |
| Mounting Dimensions (L x W): | 102 x 130 mm |
| Gross Weight: | 4.9 kg |
| Leadwire Length: | 300 mm |

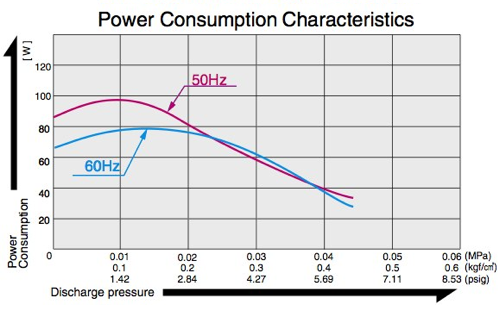

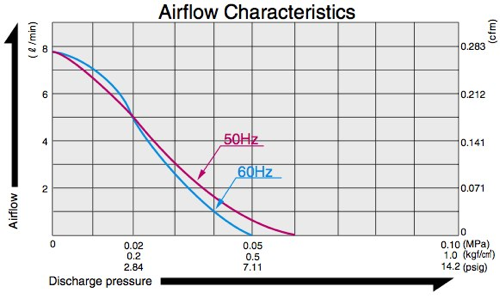

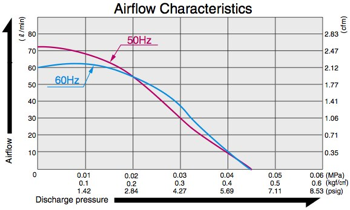

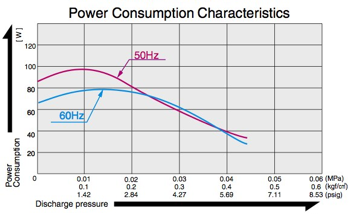

Airflow & Power Consumption
(click to enlarge)
Application Examples

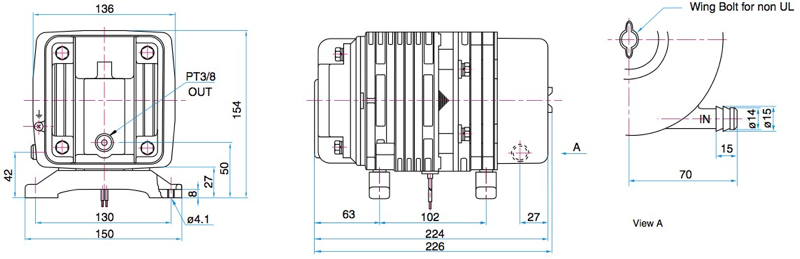

Sketch Drawing and Mounting Dimensions Diagram (mm)
