Application
Most suitable for handling electronic parts such as ICs and LSIs.
Also precise micro parts such a s watches, chemicals and other small parts.
MH-100A is composed of:
- Vacuum Pump Unit Linicin Model LV-125A
including 1 pc. of Micro Cupla MC04PH - Tube 3 x 5 x 2000mm : 1 pc.
- Tweezer (P-100): 1set
- Stand: 1 pc.
- Needle 1 x 1.5 x 40 : 1 pc.
- Pad 6 mm dia.: 1 pc.
- Pad 4 mm dia.: 1 pc.
Specifications
| Attainable Vacuum: | -333 mbar |
| Rated Voltage: |
230 V 115 V |
| Power Consumption: |
15 W 14 W |
| Rated Frequency: |
50 Hz 50 Hz |
| Life Expectancy: | |
| Duty Cycle: | Continuous |
| Coil Insulation Class: | B or its equivalent E or its equivalent |
| Mounting Dimensions (L x W): | 135 x 146 mm |
| Gross Weight: | 1.5 kg |

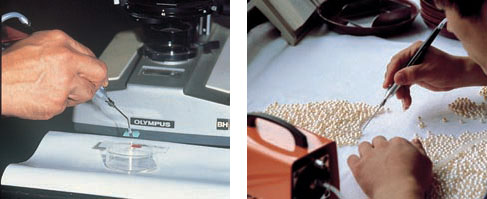

Application Examples
