Specifications
| Attainable Vacuum: | -147 mbar |
| Rated Airflow: | 6 l/min |
| Rated Voltage: |
230 V 120 V |
| Maximum Pressure: | 0.16 bar |
| Rated Pressure: | 0.04 bar |
| Power Consumption: |
6 W 6 W |
| Rated Frequency: |
50 Hz 60 Hz |
| Life Expectancy: | 5.000 h |
| Working Pressure Range: | -147 mbar to 0.16 bar |
| Outlet (Inlet): | 6mm O.D. hose nipple |
| Duty Cycle: | Continuous |
| Coil Insulation Class: |
E for 230V or its equivalent (JETL) A for 120V or its equivalent (JETL) |
| Mounting Dimensions (L x W): | 70 x 72 mm |
| Gross Weight: | 0.45 kg |
| Leadwire Length: | 300 mm |

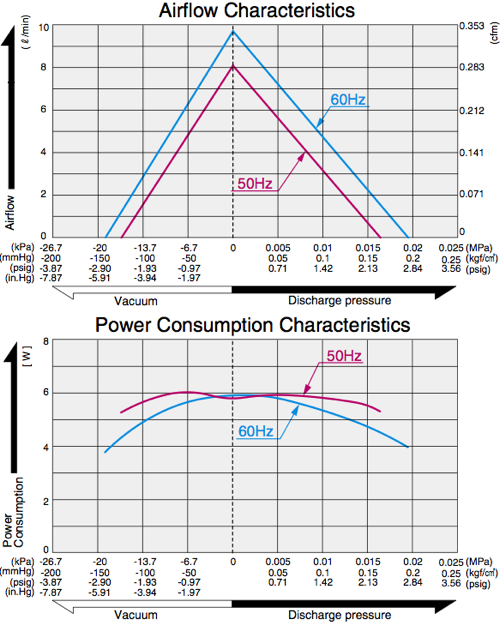

Airflow & Power Consumption
(click to enlarge)
Application Examples

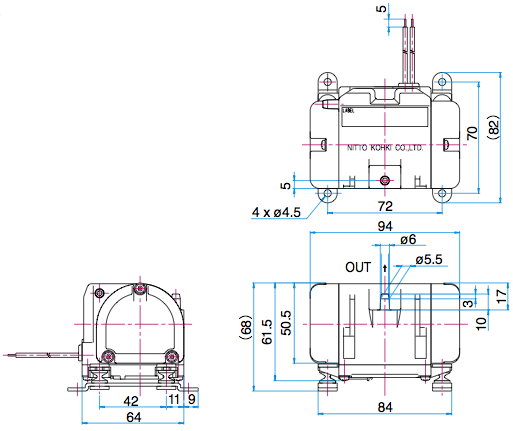

Sketch Drawing and Mounting Dimensions Diagram (mm)
