Specifications
| Attainable Vacuum: | -240 mbar |
| Rated Airflow: | 15 l/min |
| Rated Voltage: |
230 V 120 V |
| Maximum Pressure: | 0.26 bar |
| Rated Pressure: | 0.05 bar |
| Power Consumption: |
15 W 15 W |
| Rated Frequency: |
50 Hz 60 Hz |
| Life Expectancy: | 5.000 h |
| Working Pressure Range: | -240 mbar to 0.26 bar |
| Outlet (Inlet): | 7.5mm O.D. hose nipple |
| Duty Cycle: | 60 minutes |
| Coil Insulation Class: | B or its equivalent (JETL) |
| Mounting Dimensions (L x W): | 66 x 100 mm |
| Gross Weight: | 0.82 kg |
| Leadwire Length: | 300 mm |

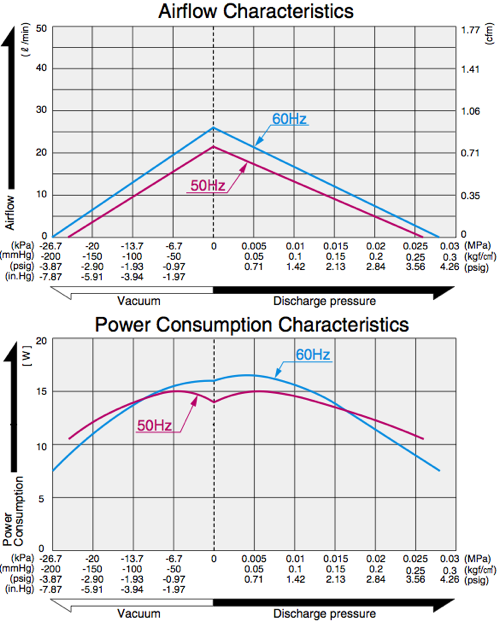

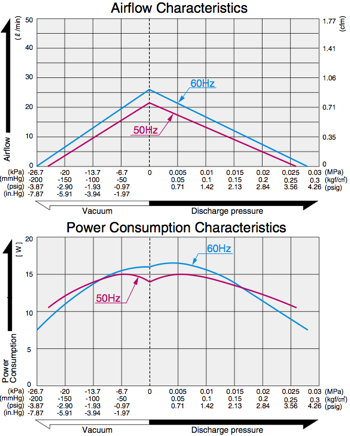

Airflow & Power Consumption
(click to enlarge)
Application Examples

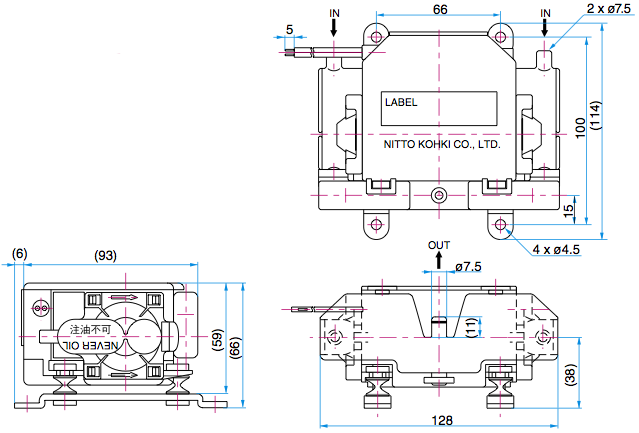

Sketch Drawing and Mounting Dimensions Diagram (mm)
