Specifications
| Attainable Vacuum: | -187 mbar |
| Rated Airflow: | 20 l/min |
| Rated Voltage: |
230 V 120 V |
| Maximum Pressure: | 0.18 bar |
| Rated Pressure: | 0.1 bar |
| Power Consumption: |
21 W 21 W |
| Rated Frequency: |
50 Hz 60 Hz |
| Life Expectancy: | 10.000 h |
| Working Pressure Range: | -187 mbar to 0.18 bar |
| Outlet (Inlet): |
8.5mm O.D. hose nipple (Outlet) 10.5mm O.D. hose nipple (Inlet) |
| Duty Cycle: | Continuous |
| Coil Insulation Class: |
B for 230V or its equivalent (JETL) A for 120V or its equivalent (JETL) |
| Mounting Dimensions (L x W): | 125 x 56 mm |
| Gross Weight: | 1.7 kg |
| Leadwire Length: | 300 mm |

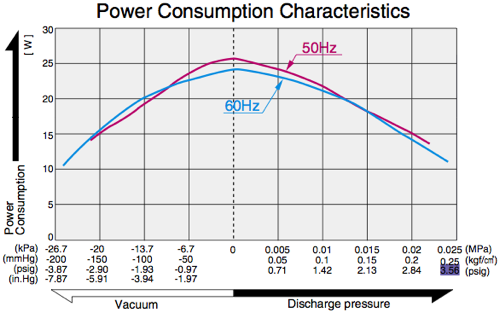

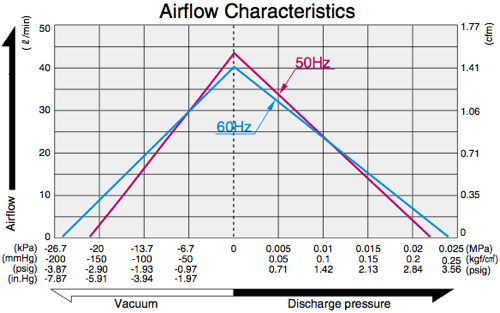

Airflow & Power Consumption
(click to enlarge)
Application Examples

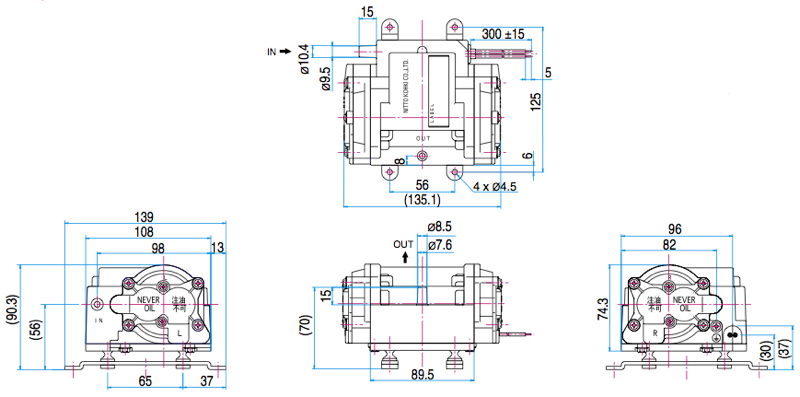

Sketch Drawing and Mounting Dimensions Diagram (mm)
