Specifications
| Maintenance Video: |
|
| Power Supply: |
230 V 120 V |
| Rated Frequency: |
50 Hz 60 Hz |
| Rated Pressure: | 0.15 bar |
| Operating Power Range: | 0,05 - 0,2 bar |
| Airflow at Rated Pressure: | 80 l/min |
| Power Consumption: |
86 W 86 W |
| Weight: | 5.3 kg |

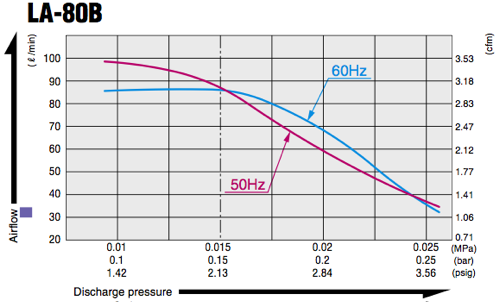

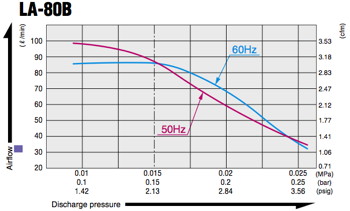

Airflow & Power Consumption
(click to enlarge)
Application Examples

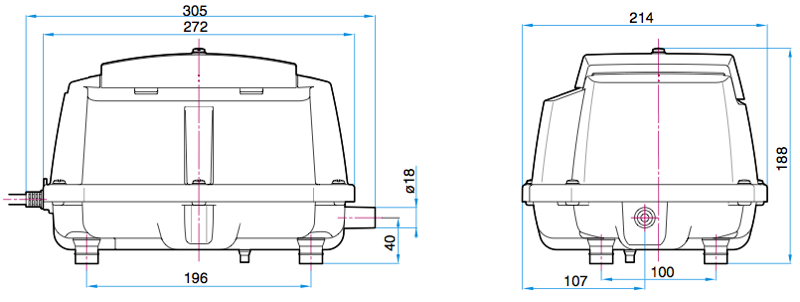

Sketch Drawing and Mounting Dimensions Diagram (mm)
