Specifications
| Power Supply: | 230/240 V |
| Rated Frequency: | 50 Hz |
| Rated Pressure: | 0.2 bar |
| Operating Power Range: | 0,1-0,3 bar |
| Airflow at Rated Pressure: | 200 l/min |
| Power Consumption: | 195 W |
| Weight: | 13.5 kg |

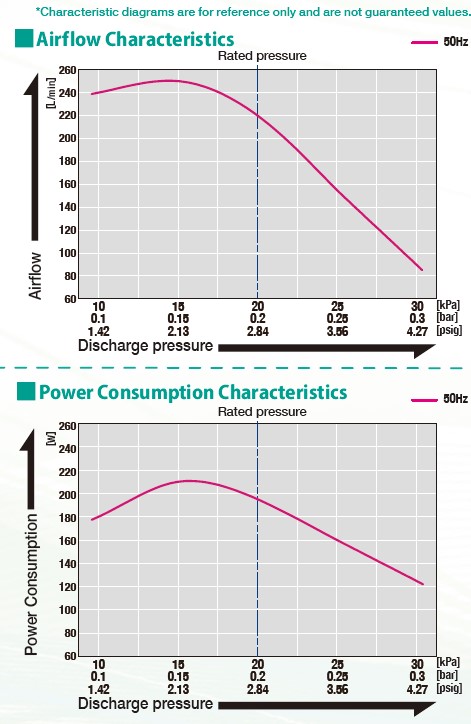

Airflow & Power Consumption
(click to enlarge)
Application Examples

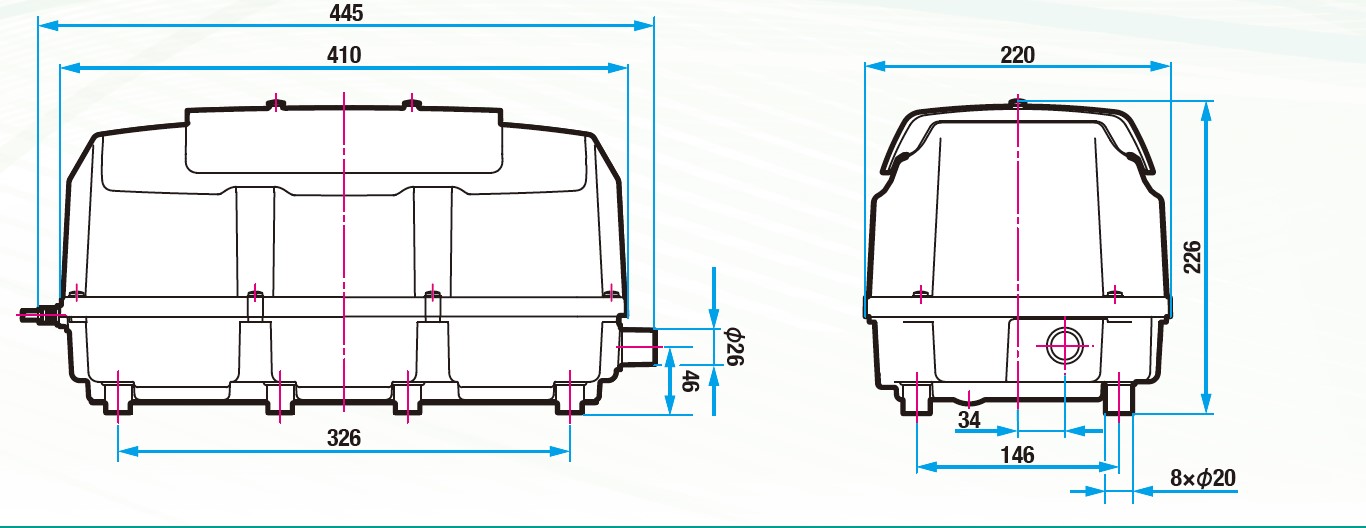

Sketch Drawing and Mounting Dimensions Diagram (mm)
