Specifications
| Rated Pressure: | 0.5 bar |
| Rated Airflow: | 2.5 l/min |
| Rated Voltage: |
12 V 24 V |
| Maximum Pressure: | 0.8 bar |
| Current (Mean Value): |
0.74 A 0.35 A |
| Live Expectancy: | 10.000 h |
| Outlet: | 6 mm O.D. hose barb |
| Duty Cycle: | Continuous |
| Coil Insulation Class: | A or its equivalent (JETL) |
| Mounting Dimensions (L x W): | 76 x 70 mm |
| Weight: | 0.91 kg |
| Leadwire Length: | 300 mm |

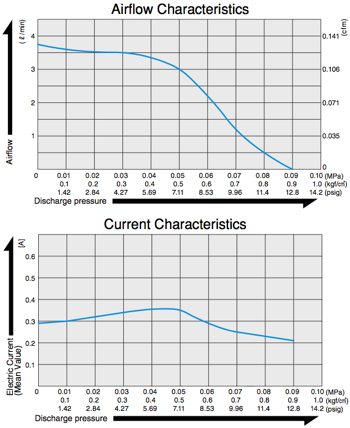

Airflow & Power Consumption
(click to enlarge)

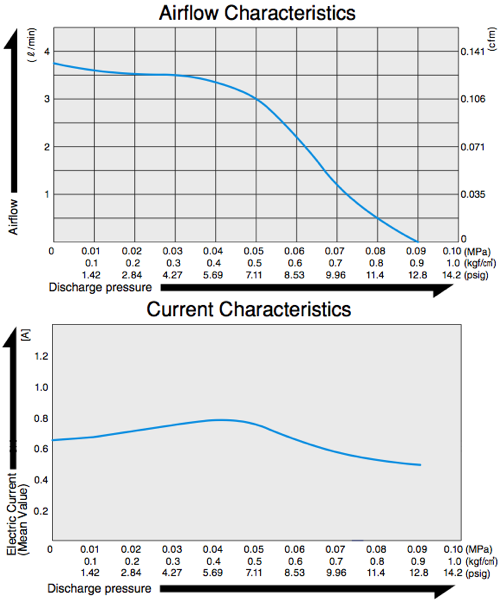

12V

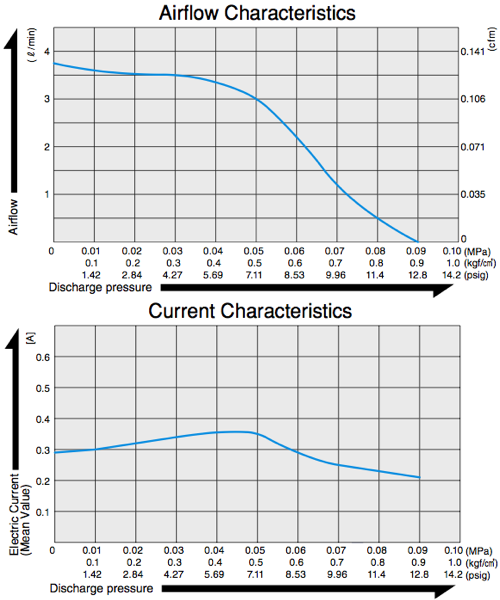

24V
Application Examples
Sketch Drawing and Mounting Dimensions Diagram (mm)
