Specifications
| Attainable Vacuum: | -666 mbar |
| Free Air Displacement: | 7.5 l/min |
| Maximum Pressure: | 1.5 bar |
| Maximum Current: |
1.2 A 0.6 A |
| Rated Voltage: |
12 V 24 V |
| Life Expectancy: | 5.000 h |
| Inlet and Outlet: | 6mm O.D. |
| Coil Insulation Class: | A or its equivalent (JETL) |
| Mounting Dimensions (L x W): | 30 x 50 mm |
| Gross Weight: | 0.3 kg |

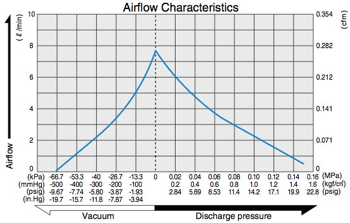

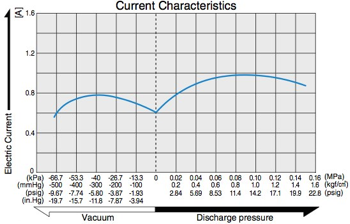

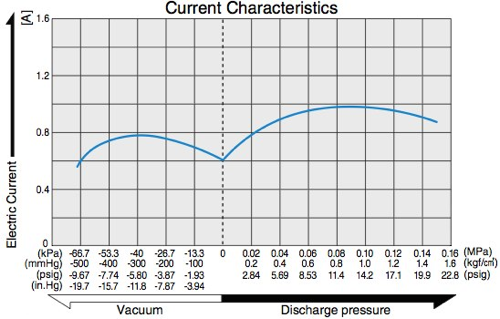

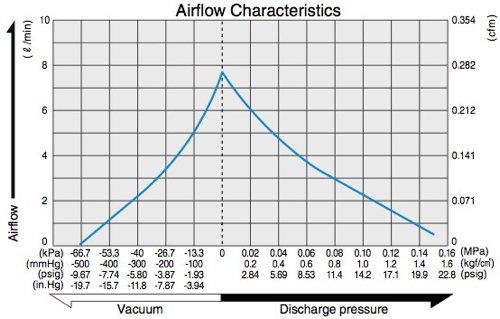

Airflow & Power Consumption
(click to enlarge)
Application Examples

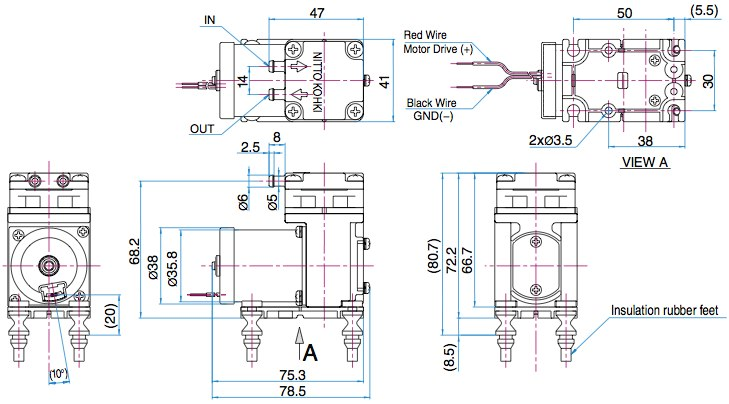

Sketch Drawing and Mounting Dimensions Diagram (mm)
