Specifications
| Attainable Vacuum: | -333 mbar |
| Free Air Displacement: | 2.5 l/min |
| Maximum Pressure: | 0.3 bar |
| Maximum Current: | 0.5 A |
| Rated Voltage: | 12 V |
| Duty Cycle: | Continuous |
| Life Expectancy: | 200 h |
| Inlet and Outlet: | 3mm O.D. straight nipple |
| Coil Insulation Class: | E or its equivalent (JETL) |
| Mounting Dimensions (L x W): | 32 x 32.5 mm |
| Gross Weight: | 0.08 kg |

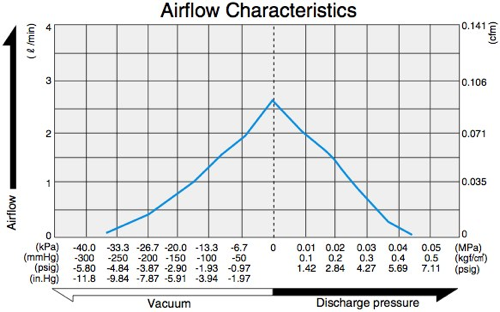

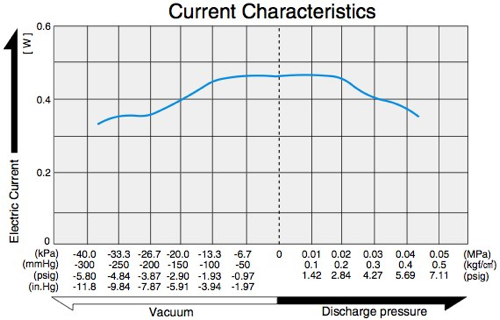

Airflow & Power Consumption
(click to enlarge)
Application Examples

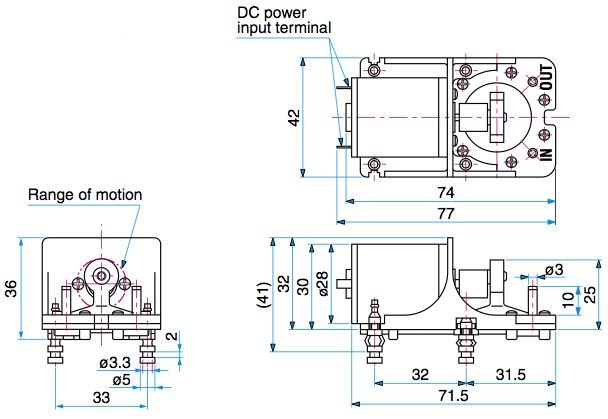

Sketch Drawing and Mounting Dimensions Diagram (mm)
