Specifications
| Attainable Vacuum: | -773 mbar |
| Free Air Displacement: | 18 l/min |
| Rated Voltage: |
12 V 24 V |
| Maximum Pressure: | 1.8 bar |
| Maximum Current: |
2,5-5.0 A 1,5-2,7 A |
| Duty Cycle: | Continuous |
| Life Expectancy: | 10.000 h |
| Outlet (Inlet): | Rc 1/8 |
| Coil Insulation Class: | E type equivalent |
| Mounting Dimensions (L x W): | 70 x 45mm |
| Gross Weight: | 1,1 kg |

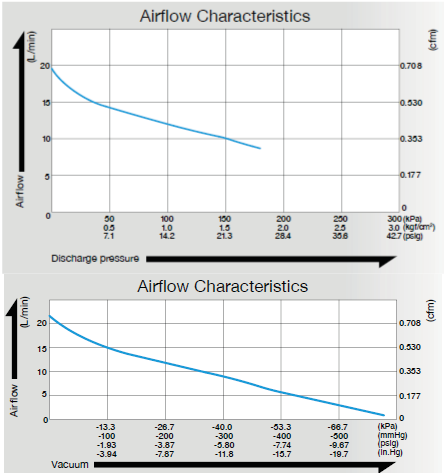

Airflow & Power Consumption
(click to enlarge)
12V / 24V

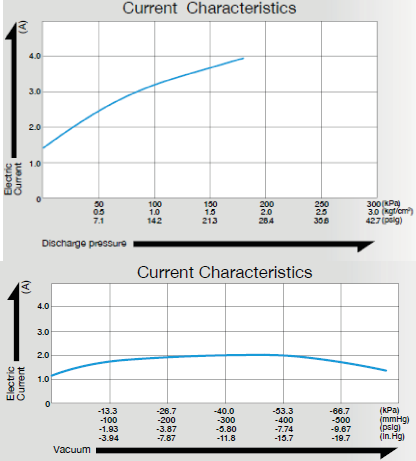

12V

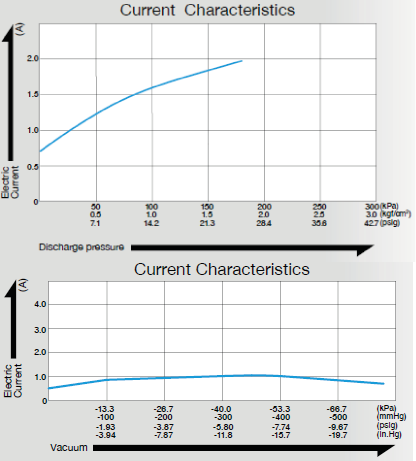

24V
Application Examples

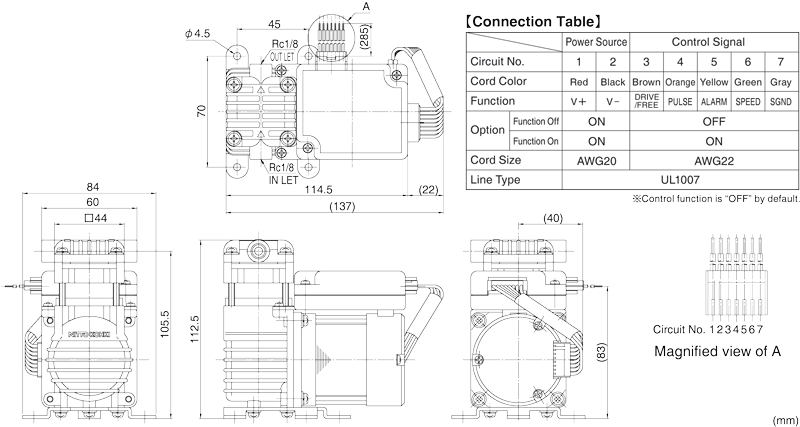

Sketch Drawing and Mounting Dimensions Diagram (mm)
